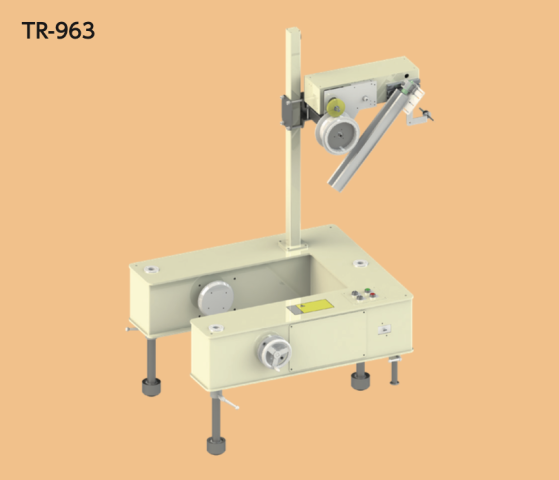

TRAVERSER TR-963

Product code: TR-963

Click Download to download detailed product information

+ PRODUCT DESCRIPTION:

Designed to feed out of traverse material (oscillated wound materials) on a spool.

Supports long periods of unattended operation.

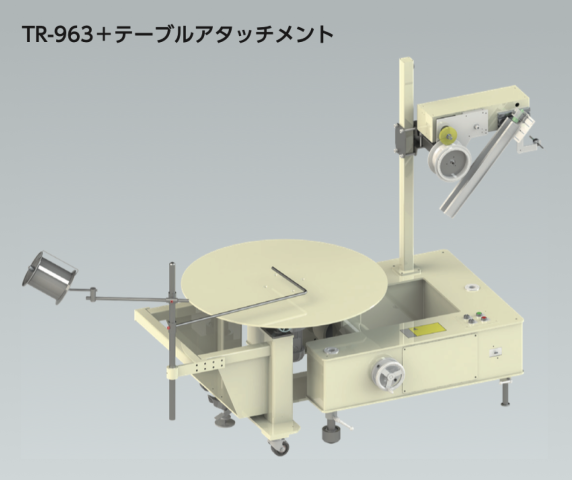

Coil material can be used with the "Table Attachment" (sold separately).

With the analogue sensor loop controller, material feeding speed is always synchronized with the press production line speed.

By using the longest traverse material supports long production run.

Can be equipped with a material joint detection sensor (optional). When detected welded end, operation will stop.

Suitable to free size spool outer diameter Φ600mm to Φ900mm.

Easy load and unload spool material by rotating up and down using a handle tool.

Product quality is stable because no backward tensile force is applied to the material.

Combine with "Table Attachment" (sold separately), coil material can be used.

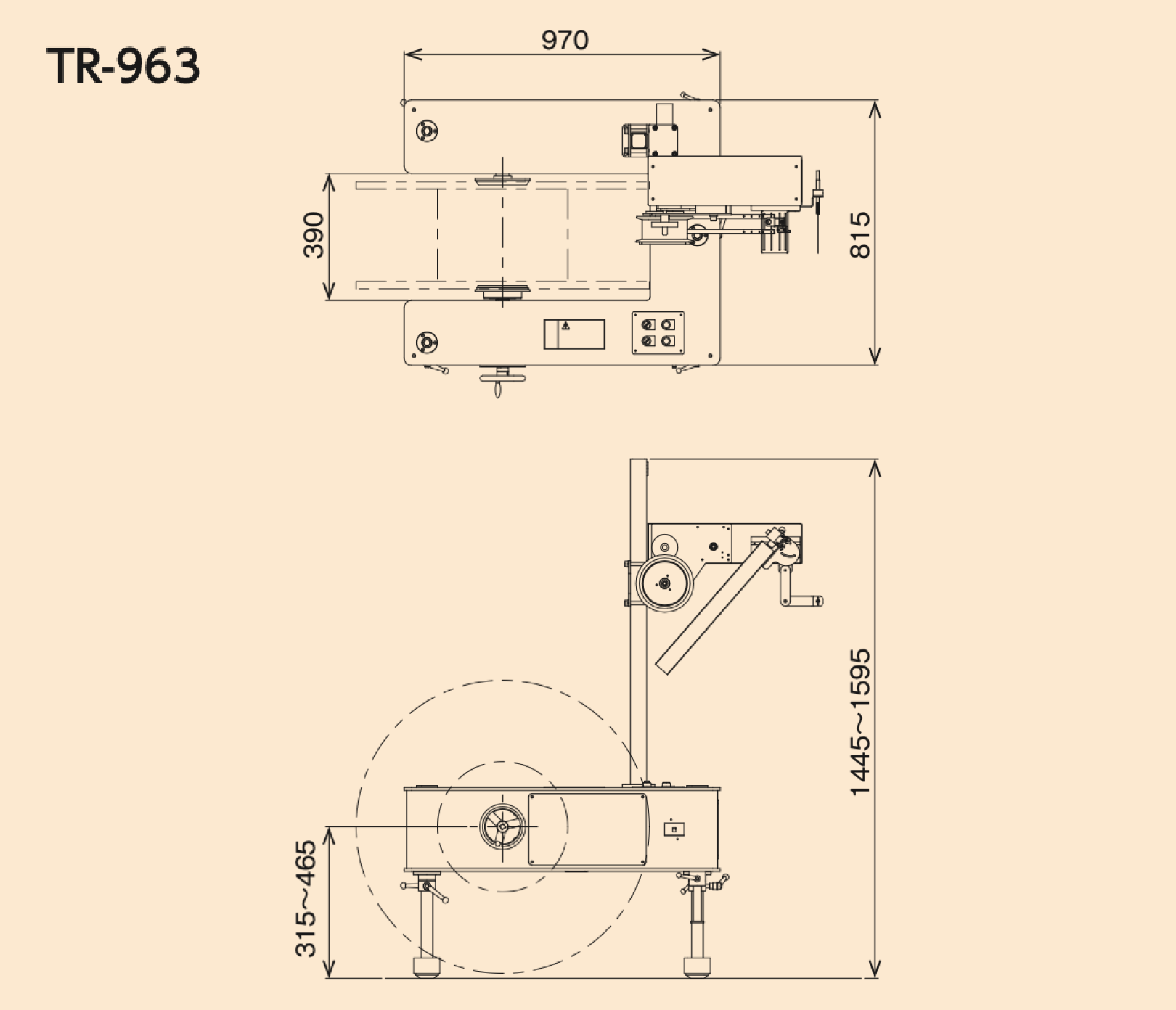

Item/Model	TR-963
Spool dimensions (mm)	Outer diameter:Φ600 to Φ900 Inner diameter:Φ400 Width 300 to 330 Drive hole(center hole):Φ160
Material size (thickness×width) (mm)	0.08 to 0.6t×5 to 40w
Maximum loading capacity (kg)	500
Spool rotating speed (r/min)	0.5 to 12
Motor capacity (gear ratio) (kW)	0.4 (1/240)
Inverter capacity (kW)	0.4
Interlock	Main machine operation stops when a fault occurs
Power consumption (kVA)	0.6
Power source	Triple phase AC200V 50/60Hz
