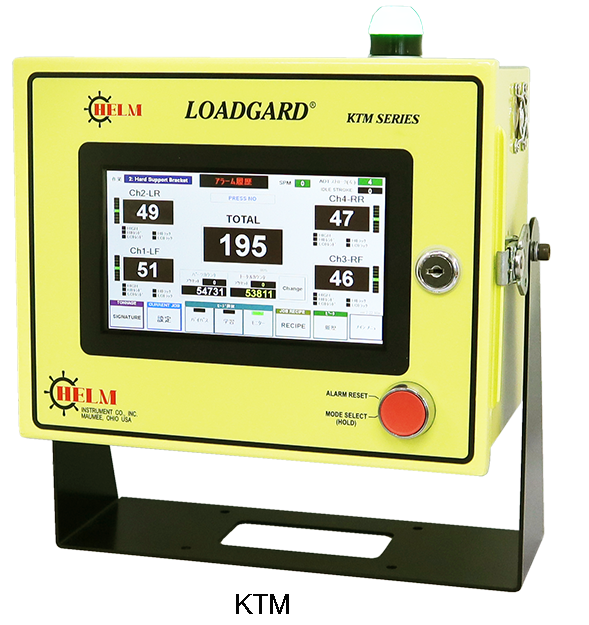

Load monitoring devices are now essential for quality control and preventive maintenance in press machine operations. We introduced the KTM model based on the concept of “Load monitor with high value-added functions at a lower price.” KTM, Windows-based panel PC incorporates, is a model with good cost performance that packs the high-end model PTM’s high functionality into a compact body. Equipped with various alarm functions as well as SPC chart display function. Convert automatically saved waveform data and peak load values for each channel to CSV data. In addition, KTM has made it possible to support communication formats (TCP/IP) for networking.

Features

• Multiple monitoring and alarming functions
  (Overload, Rolling average-value comparison, Absolute-value comparison, Reverse load)
• Simultaneous peak load display for each channel (available to support reverse load)
• Total peak load display
• Load waveform analysis (Waveform monitoring alarm settings are possible without a resolver.)
• SPC chart display function incorporated
• Easy touch-panel operation
• Monitor eccentric load deviation be setting %
• Rich strage feacures

●　Internal storage

• Saves 200 shots of waveform data for each channel
• Automatically saves peak values of 40,000 shots
• Stores up to 1000 alarm histories with time stamps

●　External storage

• Save data from USB port to external memory
• Build a network with Ethernet port (TCP/IP)
• Save alarm settings for each job using the JOB recipe function

Display load history and analysis results by an easy operation

Specifications
